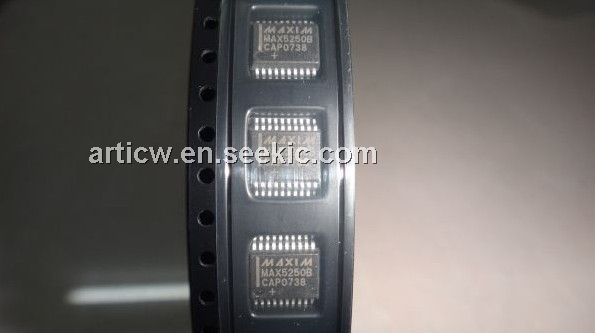

Product Summary

The MAX5250BCAP is a low-power, quad, 10-bit voltage-output DAC with serial interface. In addition to the four voltage outputs, each amplifiers negative input is also available to the user. This facilitates specific gain configurations, remote sensing, and high output drive capacity, making the MAX5250 ideal for industrial-process-control applications.

Parametrics

MAX5250BCAP absolute maximum ratings: (1)VDD to AGND: -0.3 to 6V; (2)VDD to DGND: -0.3 to 6V; (3)digital inputs to DGND: -0.3 to 6V; (4)operating temperature ranges: 0 to 70℃; (5)continuous power dissipation: 640mW.

Features

MAX5250BCAP features: (1)Available in 20-Pin SSOP and DIP Packages; (2)Power-On Reset Clears all Registers and DACs to Zero; (3)SPI/QSPI and Microwire Compatible; (4)Simultaneous or Independent Control of DACs via 3-Wire Serial Interface; (5)User-Programmable Digital Output; (6)Schmitt-Trigger Inputs for Direct Optocoupler Interface.

Diagrams

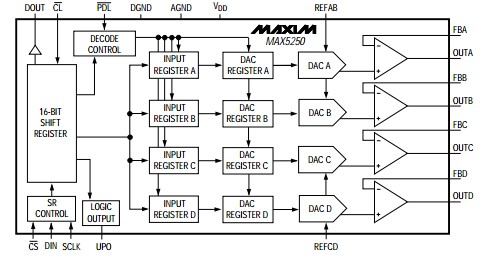

MAX5250BCAP block diagram
