Product Summary

The ADM2582EBRWZ is a signal and power isolated transceiver with ±15kV ESD protection. It has an active high enable. An active low receiver enable is also provided, which causes the receiver output to enter a high impedance state when disabled. It is designed for balanced transmission lines and comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E).

Parametrics

ADM2582EBRWZ absolute maximum ratings: (1)digital input voltage: -0.5 to 7V; (2)ESD: ±15kV; (3)lead temperature: 260℃; (4)storage temperature range: -55 to 150℃; (5)driver output: -9 to 14V.

Features

ADM2582EBRWZ features: (1)5 V or 3.3 V operation; (2)Connect up to 256 nodes on one bus; (3)Open- and short-circuit, fail-safe receiver inputs; (4)High common-mode transient immunity: >25 kV/μs; (5)Thermal shutdown protection; (6)Safety and regulatory approvals.

Diagrams

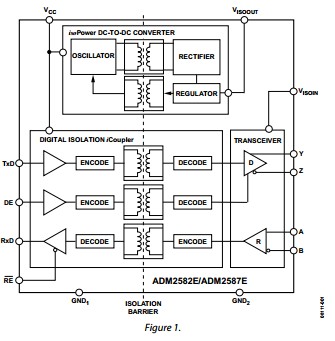

ADM2582EBRWZ block diagram
